Thread: Show me your A0014's

  1. #1
    Senior Member
    Join Date
    Jun 2005
    Posts
    126

    Default Show me your A0014's

    As the title suggest, I just want to see if I am on the same track as others on here.

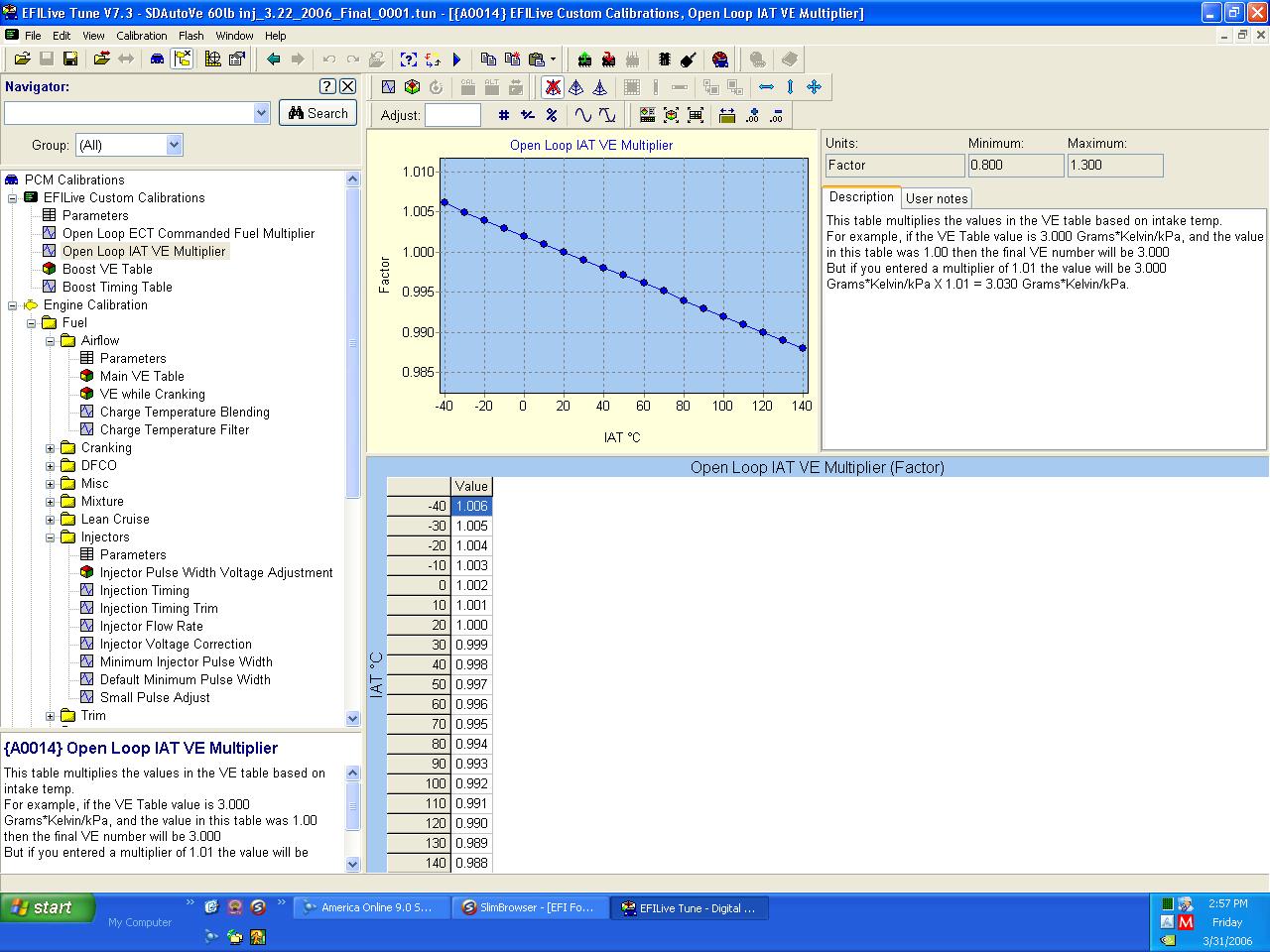

    Heres mine


    http://www.angermanagementracing.com...rary/A0014.JPG

  2. #2
    Lifetime Member oztracktuning's Avatar
    Join Date
    Nov 2005
    Posts
    596

    Default

    Mine is the total reverse of that one. Using a Over radiator cai - i have about
    0.96 at 10deg C
    0.98 at 20deg C
    1.00 at 30deg C
    1.04 at 40deg C
    1.08 at 50 deg C

    It seems weird but its working!

  3. #3
    EFILive Reseller ringram's Avatar
    Join Date
    Oct 2005
    Posts
    1,411

    Default

    Mine is same as flyer pretty much. Again, not sure why. Maybe the charge blend table is out of whack and the backwards A00014 fixes it?
    Will investigate more in a few weeks when my dart heads and cam are on
    Get EFILive in europe (http://www.efilive.eu).
    2007 Escalade ESV L92 6.2L VVT.
    2014 VF SV LS3 Maloo.

  4. #4
    Senior Member
    Join Date
    Mar 2005
    Posts
    106

    Default

    I too change like Flyer does

  5. #5
    Senior Member
    Join Date
    Jun 2005
    Posts
    126

    Default

    Yea, I guess i was going the wrong way. My assumtion was that I needed more fuel with lower IAT's. I guess the assumption is right, but the application is wrong.

    I know EFILive is coming out with a new OS that will address this after LS2/7 support, are they having it work the opposite way like stated here, or is it going off theory, and not whats seen in the real world?
    2000 Corvette Twin Turbo
    2004 CTS-V TVS 1900
    2006 TBSS TVS 1900

    All Tuned by
    Rad Tunes by Troy
    aka Vetteboy2k

  6. #6
    EFILive Crew Site Admin Tordne's Avatar
    Join Date
    Oct 2004
    Posts
    3,870

    Default

    I have been testing with this table a bit lately and this is what I have found works for me:

    In another thread Paul (Blacky) posted a spreadsheet that attempted to calculate (I guess with scientific basis) what the values should be. It had many columns to allow you to define at which IAT temp is your 1.0 factor and then scale the rest of the table appropriately. The results seemed to be in contrast what what people (me included) are seeing.

    In my previous testing I have found the same results as Flyer and ringram (where the factor increases as the IAT increases).

    This last test what I decided to do is reverse the values in the spreadsheet that Paul produced. This seems to be pretty much spot on IMO.

    So my table scaled so that an IAT of 30*C is 1.00 looks like:

    LABELS IAT VE Multiplier (Multiplier)
    IAT °C {link: SAE.IAT} Value
    -40 0.911377
    -30 0.922607
    -20 0.934082
    -10 0.946289
    0 0.958984
    10 0.972168
    20 0.985596
    30 1.000000
    40 1.014892
    50 1.030517
    60 1.046875
    70 1.063965
    80 1.081787
    90 1.100830
    100 1.120849
    110 1.141846
    120 1.164307
    130 1.187988
    140 1.213135

    Cheers,
    Andrew
    EFILive Crew


  7. #7
    Lifetime Member TAQuickness's Avatar
    Join Date
    Jan 2005
    Posts
    2,940

    Default

    tordne - will you email a copy of that spreadsheet. I get an error when i try to download it


  8. #8
    Lifetime Member GMPX's Avatar
    Join Date
    Apr 2003
    Posts
    13,148

    Default

    Quote Originally Posted by vetteboy2k
    As the title suggest, I just want to see if I am on the same track as others on here.

    Heres mine


    http://www.angermanagementracing.com...rary/A0014.JPG
    Yes, that is backwards, most have found the hotter the intake temp it leans out, esp at idle, low throttle. I found the charge table didn't seem to help the problem either.......oh, this is running full open loop, no O2 feedback at all.

    Cheers,
    Ross
    I no longer monitor the forum, please either post your question or create a support ticket.

  9. #9
    Lifetime Member oztracktuning's Avatar
    Join Date
    Nov 2005
    Posts
    596

    Default

    My table was very similar
    but i have just pasted yours Tordne

    Here was my one.

    0.979980
    0.979980
    0.979980
    0.979980
    0.979980
    0.979980
    0.979980
    0.989990
    1.010010
    1.030029
    1.050049
    1.070068
    1.090088
    1.110107
    1.100098
    1.100098
    1.100098
    1.100098
    1.100098

    Here is the difference between mine and yours

    0.068603
    0.057373
    0.045898
    0.033691
    0.020996
    0.007812
    -0.005616
    -0.010010
    -0.004882
    -0.000488
    0.003174
    0.006103
    0.008301
    0.009277
    -0.020751
    -0.041748
    -0.064209
    -0.087890
    -0.113037

  10. #10
    EFILive Crew Site Admin Tordne's Avatar
    Join Date
    Oct 2004
    Posts
    3,870

    Default

    I'll be interested to see your results (either way).

    I think if I was to start all over again with the Custom OS I might actually find where my IAT is most likely to be at 1.00 and then install the appropriate table to start with. I think that a lot of my changes have been related to variances in IAT. Often times the same cells will toggle from perhaps 0.98 to 1.02 BEN, and it might be that one log was done at say 20*C IAT and another at 30*C IAT.

    I am finding that my values are a lot more consistent as a result
    Andrew
    EFILive Crew
