PCM pinout 2004 Silverado SS 6.0

Can anyone help with the pinout for programming offboard?

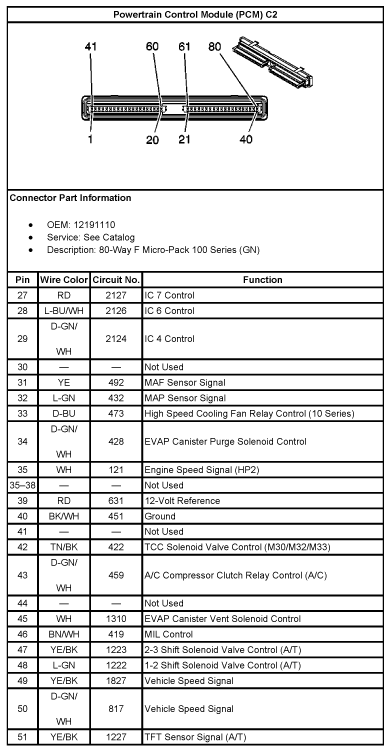

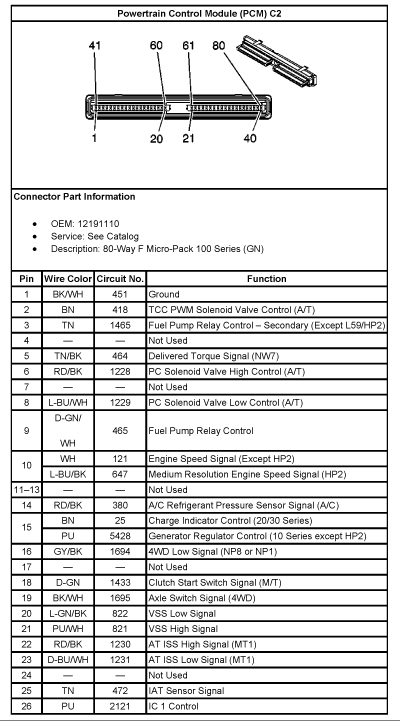

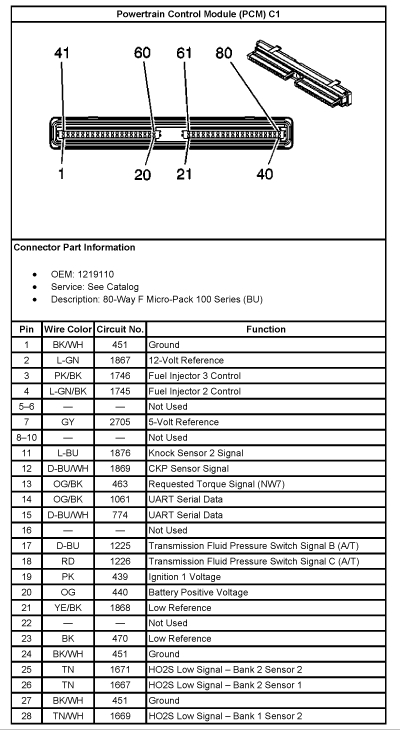

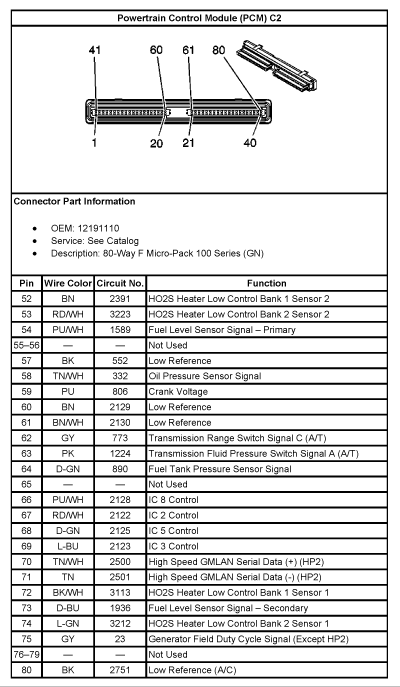

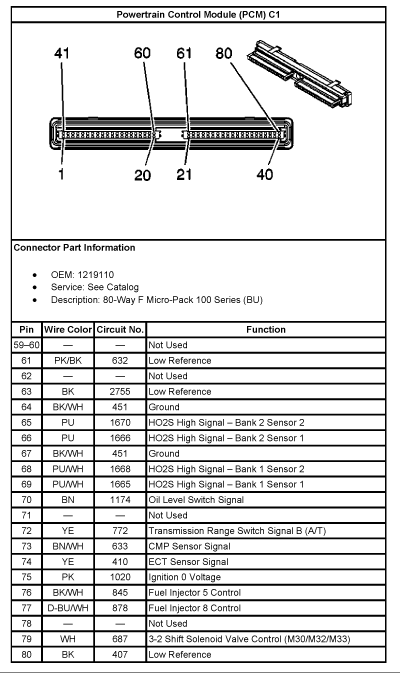

1mb LS1 PCM pinouts :angel_innocent:
Attachment 9835Attachment 9837Attachment 9839

Attachment 9838Attachment 9836

Brilliant, thank you VERY much!

I also needed this thank you :)

Thanks alot, would this be the same pinout for a 2004 chev 1500, 5.3?

If it uses the 1mb LS1 PCM. ;)

Quote:

---

Originally Posted by mr.prick

1mb LS1 PCM pinouts :angel_innocent:
Attachment 9835Attachment 9836Attachment 9837Attachment 9838Attachment 9839

---

Do you have the page that is missing?

:sly:

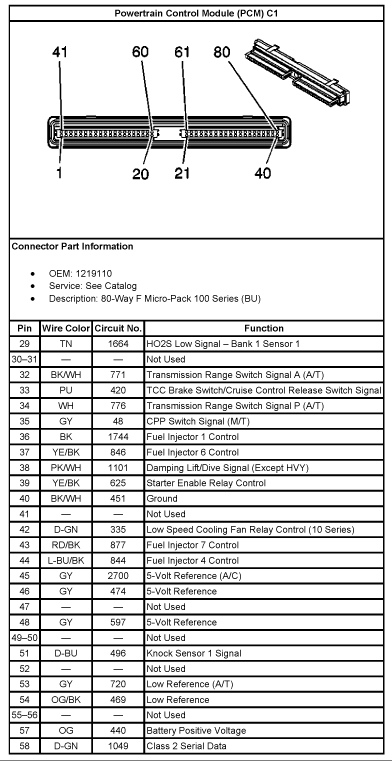

Attachment 12354

Awesome thanks :rockon:

Informative thread, to bad the pictures in first post went Red X ?
