Here recently when I open a frequently used dashboard only 3 panels with the quages at each end show up on the screen instead of the normal 4. Am I triggering this inadvertantly somehow and when it happens how do I return it to 4 panels? I've looked under Properties but don't see anything that fits.
You mean charts...?
Post a screenshot.
Check which dashboard file is being opened.
You can add charts (I usually have 5 or 6).
I guess charts is a better word. How do you increase or decrease?
Right click and select add chart, or new chart, I can't remember the exact wording.
Regards Paul
Thanks
Yes, what Paul said...
rightclick->Add->Chart->New Chart
then in each of the 4 corners do rightclick and select the pid you want in that corner.
Got the chart added but the font size is small for the PID's. Tried editing in properties but nothing works. Any tips on how to do it?

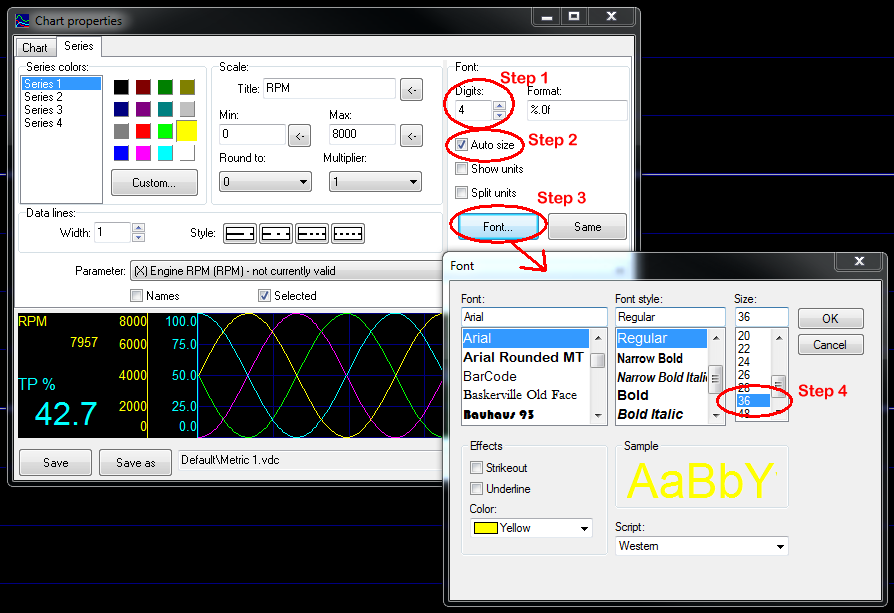

Select the number of digits you expect to be displayed and then check the "Auto size" check box to cause the font to automatically be the largest size able to display that number of digits.
The tricky part is that the font size selected when you click on the [Font] button is still the overriding maximum font size. So make sure you select something like 30 or 40 points for the font size.
Attachment 14808
Regards
Paul
