30-4110 it's the same as the 30-4100 but uses the new LSU 4.9 sensor
Printable View
30-4110 it's the same as the 30-4100 but uses the new LSU 4.9 sensor
Can you post the user manual pdf for it...Quote:
Originally Posted by bplumcrazy
http://img.tapatalk.com/d/14/10/05/azubunyz.jpg
This is the diagram....... I have pin 5 grounded and tried the blue wire on pin 2 and said not found then I tried pin 1 (on the RJ connector)
Did you ever get this figured out and working with the v2?
I gave up and bought a different one!
Lol well dang im trying to hook mine up having the same problem
I've been working on a new serial interface for the Ecotrons ALM wideband. It will be available for testing in a few days
Since I'm currently working on the wideband serial interface for FlashScan I'll take another look at the AEM serial interface to see if anything is wrong. I'll probably not get to it until Tuesday next week. I'll post up any relevant info then.
Regards
Paul
Alright then thnx
A pre-release version of the software is available that supports the Ecotrons ALM wideband serial interface, available here:
https://forum.efilive.com/showthread...pdate-Jan-2015
Regards
Paul
Alright thnx I'll try it when I get home from work tonight
There is a bug in the Jan 2015 pre-release firmware that causes black box logging to fail and that prevents wide band O2 data from being logged.Quote:
Originally Posted by efilivesteven
You can however, use the: F1 Scan Tool -> F2 Data Logging -> F3 Display WO2 option to view the wideband data.
When viewing the wideband data, press [Back Space] to cycle through the wide band types until you get to the correct one.
As soon as its available, updated firmware will be posted here: https://forum.efilive.com/showthread...e-and-firmware
Regards
Paul
Hmmm Not sure why you guys are having problems getting a UEGO to work on your V2.
I use one regularly and i'm on the latest V2 firmware,V7,V8 releases (non Beta)... no issues for me.
Does the serial data link light flash on your V2 when you plug the serial cable in? (it will flash regardless of whether you have the V2 configured correctly)
Attachment 18016
I only get 2 lights to flash on my v2 and thats when im loading a tune or pulling a tune
You definitely have a wiring issue, a fault with your aem or a fault with your v2 serial socket.Quote:
Originally Posted by efilivesteven
From memory serial data light is 2nd from the right and should blink as soon as the v2 is connected to a serial data source via the connector.
Time to do some troubleshooting...
Have you connected your v2 to any other serial device?
Have you tried connecting your AEM to a laptop to check that it is sending serial data? Plenty of info on the net re how to do this. ;-)
Second from the left. :)Quote:
Originally Posted by T2000
LEDs on FlashScan V2 are (from left to right):
- Green = Data logging in progress
- Orange = Serial data TX/RX
- Blue = Data being written to flash memory or SD Card
- Orange = OBDII data TX/RX
- Green = USB data TX/RX
Regards
Paul
I will check all this tomorrow after I get off work. I always just figured I was doing something wrong.

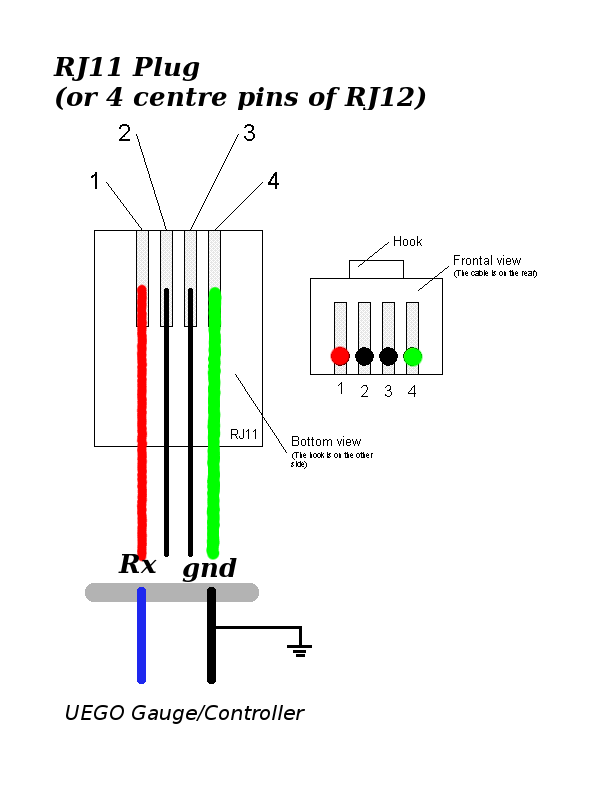

T2000 Thank you for the diagram. I have read many threads about this but this is by far easiest thing to understand. Just got my UEGO and trying do decipher every ones descriptions was a PIA. Thanks for the pic!
Can you run the ground off the UEGO and the ground from the RJ11 together? or should they be separate?
well since people have been here fairly recently I will post here, I two originally was getting the Wo2 not found turns out I had the wires wrong signal needs to come out of pin 2 where it goes into V2 so its the red wire 2nd from right with the clip bit facing up. Now I am getting the AFR reading but when logging it doesn't display anything on the PID? Anyone have a solution to this issue?
See issue #2 here:Quote:
Originally Posted by jmsmotorsport
https://forum.efilive.com/showthread...Public-Release
Regards
Paul
Hey mate I actually download a new version yesterday or is this one later? I managed to log it just into the V2 but when in pass through mode it doesn't work.
Check the installed version number in Help->About. If you downloaded and installed the software from our web site it will be V7.5.7.282.Quote:
Originally Posted by jmsmotorsport
You need to then do the "Check For Updates" option to update it to V7.5.7.283.
Regards
Paul
Checked the version and you were spot on, updated it so will check it again tomorrow and see if it's sorted. This has to be one of the best forums I have been on.
