Thread: connecting 5v pressure sensor directly to v2

  1. #1
    Lifetime Member
    Join Date
    Jan 2014

    Default connecting 5v pressure sensor directly to v2

    not sure if this forum is active but I have a general question..

    If I wanted to connect a 0-5V pressure sensor directly to the V2, does the V2 source the 5 volt power to the sensor? or can I just only run the signal back to the V2 and I need to find my own 5V source?

    Also generally looking for more info on connecting directly to these ports on the V2, like pin outs and such.


  2. #2
    Lifetime Member
    Join Date
    Mar 2006

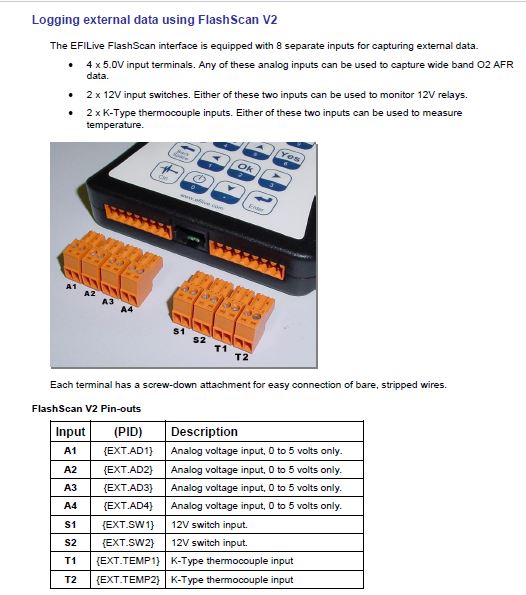

    Found this on Page 104 on the EFILiveV75Scan.pdf.

    You will need a 5 Volt source from the PCM to power your sensor.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	v2.JPG
Views:	105
Size:	69.3 KB
ID:	24181

  3. #3
    Joe (Moderator) joecar's Avatar
    Join Date
    Apr 2003


    FSV2 does not provide 5V output, you have to provide your own.

    FSV2 only provides signal input and signal ground.
