    Default OS 12613248 Not Supported IAC PIDS?

    Trying to tune a cammed 2007 silverado today and noticed the IAC PIDs arent supported after i validated PIDs.
    am i out of luck trying to figure out Throttle Follower and Throttle cracker tables?

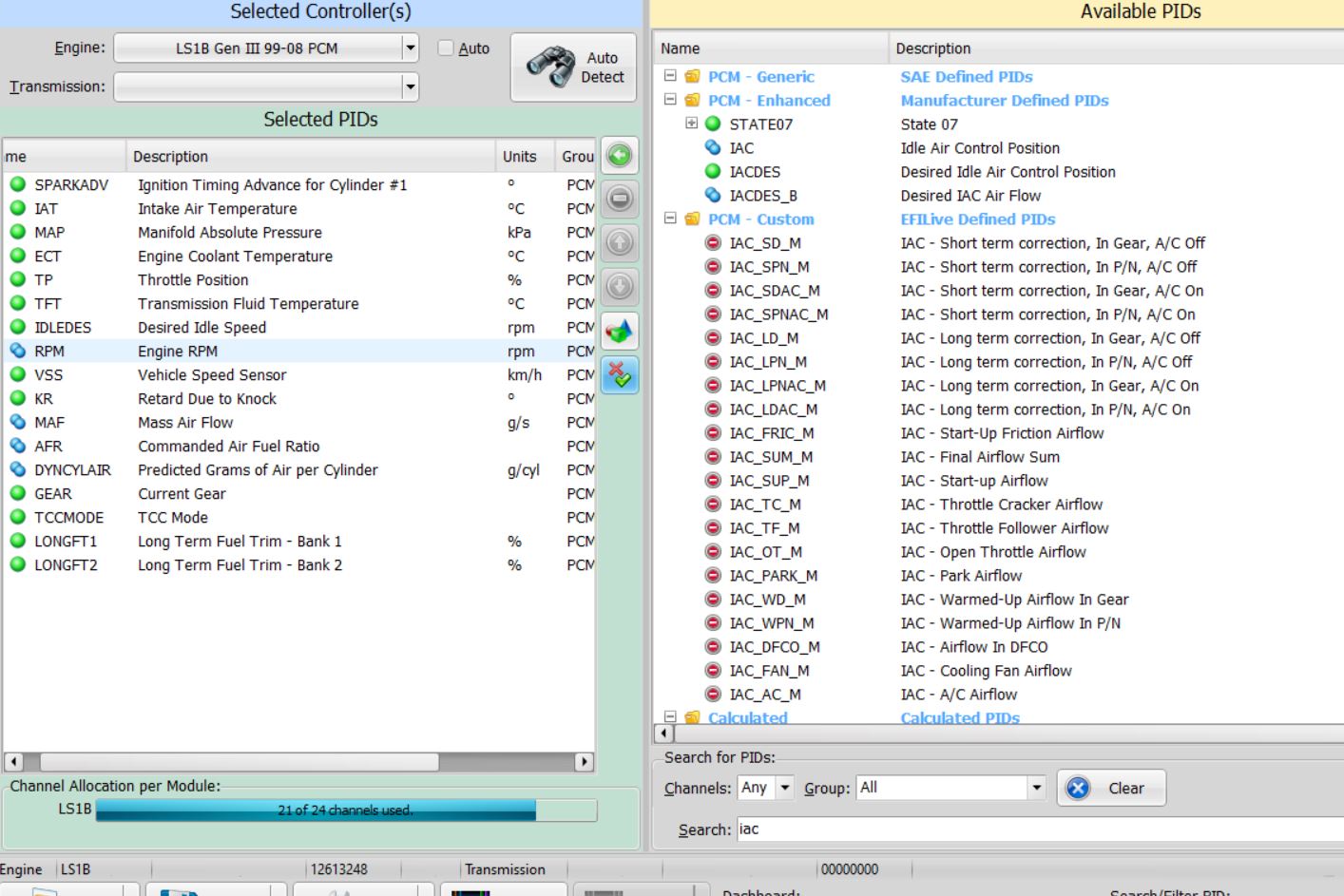

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	ls1b os 12613248.JPG
Views:	81
Size:	204.1 KB
ID:	24419

  2. #2
    Senior Member
    Join Date
    Aug 2016
    Posts
    157

    Default

    Do those PIDs work in V7.5?

    If you go ahead and attempt to log them, then try logging data, will they actually show data?

    I've had it tell me PIDs are not supported, but after connecting and logging they become supported and have data.

  3. #3
    Lifetime Member ChipsByAl's Avatar
    Join Date
    Feb 2006
    Posts
    618

    Default

    This was the same problem with OS 12613248. I was unable to validate or log the PIDS for these IAC pids.
    Al
    "Trash that carb and get Injected!"

  4. #4
    Joe (Moderator) joecar's Avatar
    Join Date
    Apr 2003
    Posts
    28,403

    Default

    Some DMA (_M) pids are supported by some OS's and not by all.

  5. #5
    Lifetime Member
    Join Date
    Mar 2006
    Posts
    570

    Default

    Quote Originally Posted by pinstripebob View Post
    Do those PIDs work in V7.5?

    If you go ahead and attempt to log them, then try logging data, will they actually show data?

    I've had it tell me PIDs are not supported, but after connecting and logging they become supported and have data.

    Nope, ive tried V8 and V7.5 selected the PID and started scanning and tried recording.. nothing worked.





    Quote Originally Posted by ChipsByAl View Post
    This was the same problem with OS 12613248. I was unable to validate or log the PIDS for these IAC pids.
    Al
    Im finding several OS's that arent supported. And of course they are the ones with a large cam and the only way i have found to get Idle airflow adjustments is to use HP Tuners scanner. Then use that info to adjust the tune and flash with EFI.




    Quote Originally Posted by joecar View Post
    Some DMA (_M) pids are supported by some OS's and not by all.
    :(
