Thread: TAQ Cables: Wideband to V2 Serial Cables

  1. #1
    Unknown Zone TAQuickness's Avatar
    Join Date
    Jan 2005
    Posts
    2,940

    Thumbs up TAQ Cables: Wideband to V2 Serial Cables

    These are plug-and-play cables enabling you to log your wideband O2 sensor via serial link to FlashScan V2. Learn more about the advantages of serial vs. analog WB logging.

    To order, visit: TAQCables

    The following wideband controllers are supported:
    TAQCable sLC1 (~ 3' [1m]) for Innovative LC-1*
    TAQCable sLC1e (12' [3.7m] extension) for Innovative LC-1
    TAQCable sLM2 (~ 4' [1.2m]) for Innovative LM-2
    TAQCable sTE (~ 3' [1m]) for TechEdge controllers

    Edit: I have dropped the sLM1 from the product line.

    *For sLC1 only, custom length cables, from 0.5' (0.15m) up to 12' (3.7m) available for an additional fee
    Last edited by TAQuickness; March 8th, 2010 at 10:42 PM. Reason: sLM1 Update

  2. #2
    Unknown Zone TAQuickness's Avatar
    Join Date
    Jan 2005
    Posts
    2,940

    Arrow TAQ Cable - sLM2

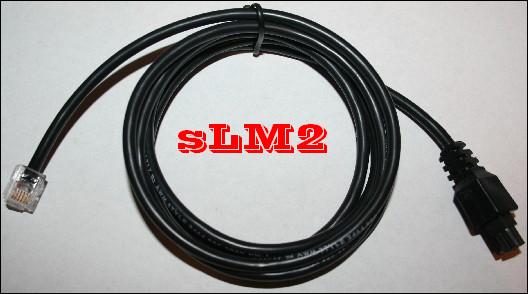

    For reference, the PDF attachment contains the instructions for installing the sLM2 cable and validating the connection. Also attached is a photo of the sLM2 cable
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	sLM2.jpg
Views:	438
Size:	24.9 KB
ID:	3769
    Attached Files Attached Files

  3. #3
    Unknown Zone TAQuickness's Avatar
    Join Date
    Jan 2005
    Posts
    2,940

    Default Serial vs. Analog?

    Serial communication has many benefits over analog:

    • Accuracy: Serial data is a digital transmission and is not as susceptible to interference as analog signals (i.e. no static. The data packet is either sent or it's not.)
    • Efficiency: Setting up V2 for serial communication takes less than 3 minutes and requires 0 maintenance. Analog configuration requires programming of the WB controller, calibration of the analog inputs, and, in some cases, configuring custom PID's to convert the analog input to AFR, lambda, or EQ ratio.
    • Real Estate: By utilizing V2's serial interface, you now have 1 or 2 more available analog inputs for logging other important stuff (i.e. fuel pressure, oil pressure, oil temp, N20 bottle pressure, etc…). Another good thing, especially for LM-2 users, you can eliminate the WB analog cable!
    • Perks: When utilizing one of the Innovative widebands, V2 can command the wideband controller to perform a free air calibration of the sensors. You can't do that via analog's.

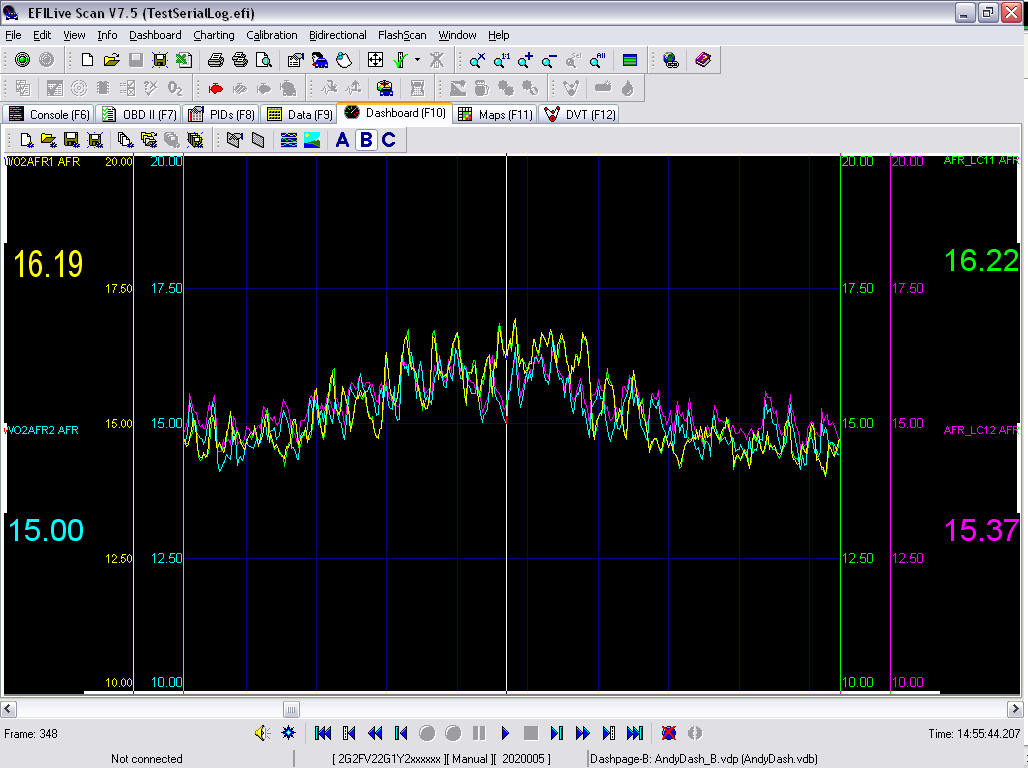

    The attached screen shot demonstrates the difference between box-stock serial and analog data. What you are looking at:
    • Brand new dual channel LM-2 w/ new sensors. Updated to the latest LM-2 firmware and performed a free air calibration for both sensors - no other configuration was performed.
    • V2 was formatted and upgraded to firmware 20, followed the steps in the sLM2 instructions to setup V2 for serial communications - no other configuration was performed.
    From left to right, top to bottom: Serial Bank1, Analog Bank1, Serial Bank2, Analog Bank2. Theoretically, there should only be 2 visible traces in the chart. However, you can see there is a 0.3% - 3.7% variance between the respective serial and analog values.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	serialVSanalog.PNG
Views:	624
Size:	70.3 KB
ID:	3739

  4. #4
    Joe (Moderator) joecar's Avatar
    Join Date
    Apr 2003
    Posts
    27,804

    Default

    TAQ, generous cable length and good write up...

  5. #5

  6. #6
    Unknown Zone TAQuickness's Avatar
    Join Date
    Jan 2005
    Posts
    2,940

    Arrow TAQ Cable - sLM1

    For reference, the PDF attachment contains the instructions for installing the sLM1 cable and validating the connection. Also attached is a photo of the sLM1 cable
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	sLM1.jpg
Views:	345
Size:	10.4 KB
ID:	3771
    Attached Files Attached Files
    Last edited by TAQuickness; September 4th, 2008 at 10:10 AM. Reason: Photos and Instructions Now Available!!!

  7. #7
    Unknown Zone TAQuickness's Avatar
    Join Date
    Jan 2005
    Posts
    2,940

    Arrow TAQ Cable - sLC1

    For reference, the PDF attachment contains the instructions for installing the sLC1 cable and validating the connection. Also attached is a photo of the sLC1 cable
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	sLC1.jpg
Views:	380
Size:	12.7 KB
ID:	3773
    Attached Files Attached Files
    Last edited by TAQuickness; September 4th, 2008 at 10:09 AM. Reason: Photos and Instructions Now Available!!!

  8. #8
    Forum tyhee Site Admin GMPX's Avatar
    Join Date
    Apr 2003
    Posts
    12,805

    Default

    For the price these are being sold for you just would not bother trying to make one yourself. Nice work.

    Cheers,
    Ross
    Need official EFILive help, please go here.
    For tuning support please post your questions on this forum (or other auto forums).
    Sorry if I don't respond to your PM, don't take it personal.


  9. #9
    Lifetime Member Bruce Melton's Avatar
    Join Date
    Oct 2003
    Posts
    674

    Default

    Quote Originally Posted by GMPX View Post
    For the price these are being sold for you just would not bother trying to make one yourself. Nice work.

    Cheers,
    Ross
    Ain't that the truth?

    And considering I will give you one free with a LM-2--

    2000 C5 Coupe, 6M, Callies/Mahle stroked LS7 (441), Blackwing, Halltech, LS3 intake, 90mm Shaner TB, ported L92 heads, FAST 50# inj, not too much cam, Kooks 1 7/8" headers , 3" catless mid pipes, Z TIs, track suspension, , 3:90 rear, EFI V2, LM-2, etc.
    PowrMax Performance

    100 mm PowrMAF

    LM-2 EFILIve package with TAQ -sLM2 V-2 serial cable> Package deals
